3x2x1 Rubik’s Cube Production File

Posted on by

My prior copy of this 3x2x1 Rubik’s Cube was printed a few parts at a time – I’d print one part, test it, print up another, etc.  Last night I was able to use my production file to generate all seven pieces in one go.  It took 1 hour and 45 minutes to complete the print job, but well under three minutes to clear most of the pieces of the raft off the parts and assemble the puzzle.  In order to help people modify and improve upon my design, I’ve upload the original Sketchup files, the STL I used, as well as my own GCode.

Owenscenic on Thingiverse asked,

I am interested in trying your gcode, how did you generate it? How well does it minimize strings between the printed parts? I’ll look at is to see how it starts and the temp…

In case you’re wondering too, the answers are as follows:

  1. I generated the Gcode using my slightly tweaked RepG v18 built-in Skeinforge settings for ABS with a raft, with a build temperature of 220C.
  2. The Gcode does pretty well with minimizing stringing.  However, some of the credit has to go with the part placement in the STL production file as well as the nature of the object.  As soon as you assemble it and start to rotate the parts, most of the remaining strings and little blobbies will pop right off.

Owenscenic, please let me know how your print of this turned out!  Please post a picture!

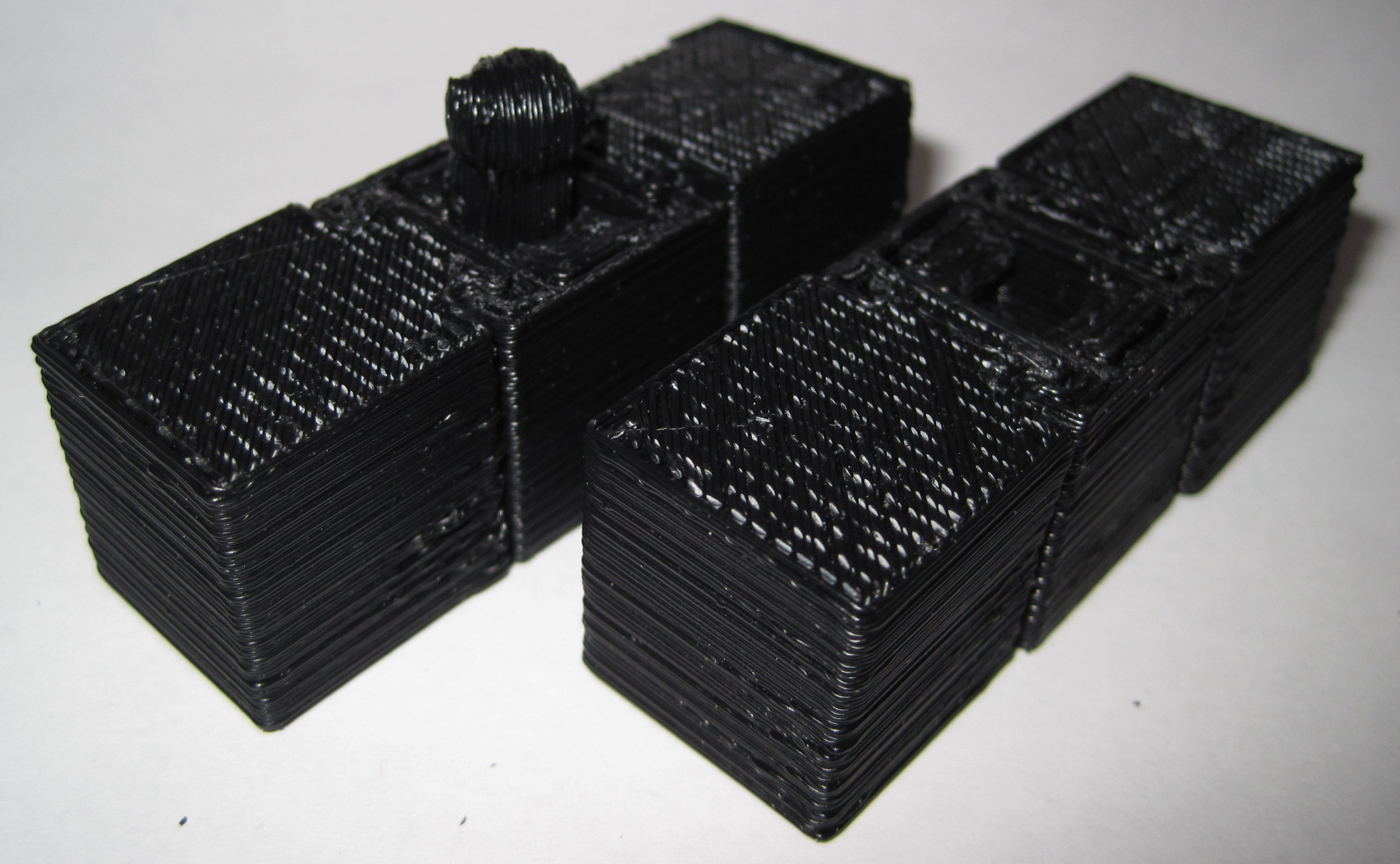

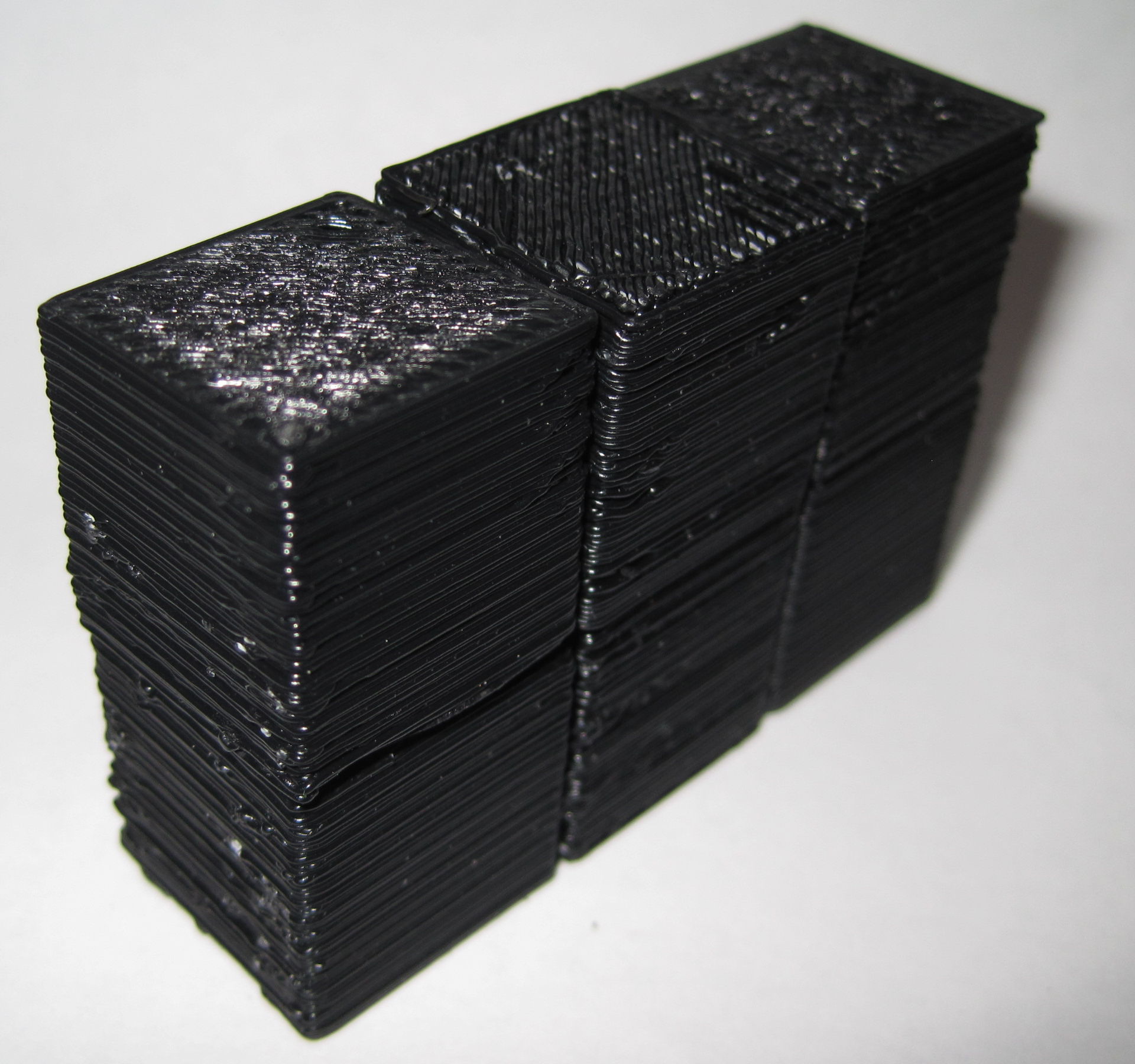

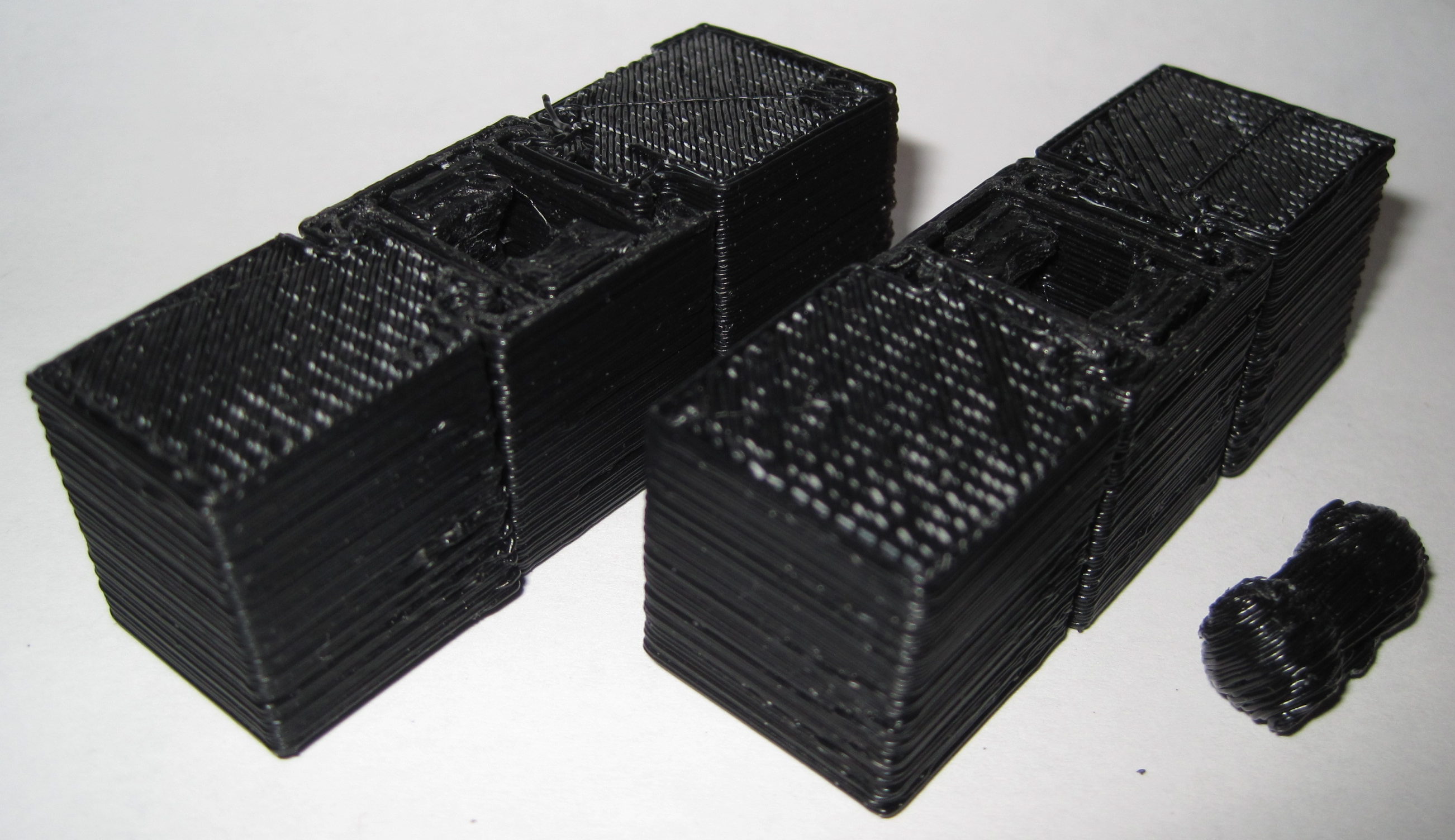

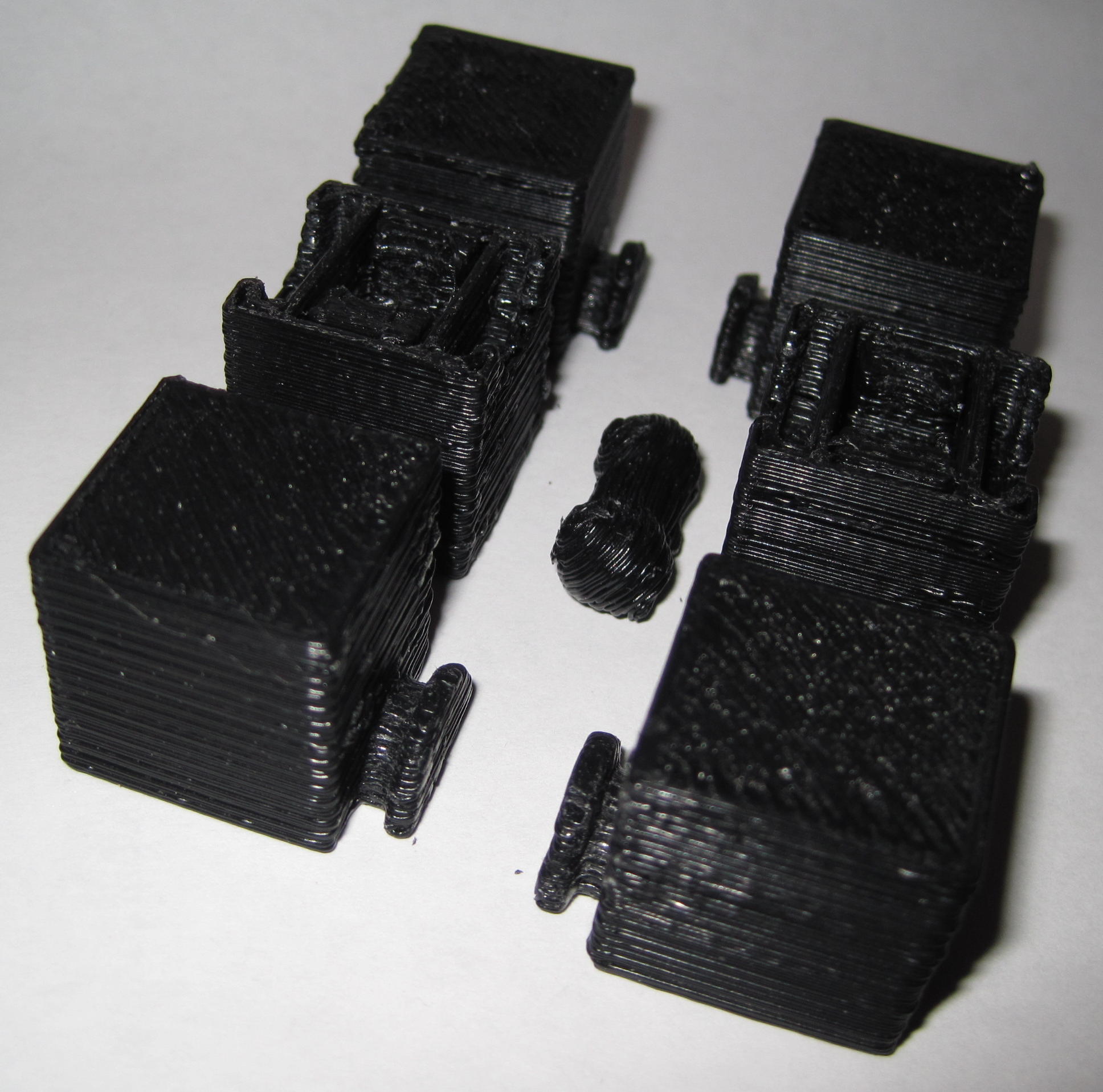

3x2x1 Rubik’s Cube assembly pictures

Posted on by

The design should be pretty intuitive.  However, I went ahead and took some pictures of the assembly anyhow.

As I mentioned in an earlier post, I think this one came out really really well.  :)

3x2x1 Rubik’s Cube – done!

Posted on by

I’m so happy with the way this has turned out.

I’ve made a bunch of changes since the last revision of this printable 3x2x1 Rubik’s Cube puzzle:

  • I’ve totally redesigned the center barbell connector.  I simplified the design, removed the five support struts for each end and replaced it with a single support strut and a flat hexagon in the center of the piece.  The purpose of the hexagon is to give the barbell more contact area with the raft.  One of the earlier drafts didn’t have as many supports or this flat hexagon, and it tore off the build platform partway through the build.
  • I increased the diameter of the tube between the barbells.  This enabled it to print easier, made it a little more sturdy, and decreased the wobbliness of the barbell when everything is assembled.
  • I also shortened the entire barbell by 1mm, so that the entire puzzle is held together more closely.
  • I made the flat semi-circular tabs slightly thinner so they rotate a little more freely.
  • I significantly redesigned, thickened and simplified the two brackets that the barbell snaps into.  It’s been able to easily withstand numerous couplings/decouplings as well as numerous rotations.  With a few rotations, all parts now rotate easily.
  • All of the parts fit together SO much better than my first draft held together with a nut and bolt.
  • There is a slight bit of sideways flex that can occur with the use of the barbell.  It is really minor and it actually seems to help the puzzle be more forgiving as you manipulate it.  I see this more as a benefit than a design flaw.

The was one design choice on which I waffled.  I considered making the center cubes non-identical, with one having half a barbell stick out and with the other having the internal connector you see now.  This would have removed much of the sideways flex – since the barbell would be stationary.  I did not go with this design choice because whether the puzzle used one barbell and two connectors or male/female center cubes, there would always be some flex caused by the use of a connector rather than a static pin.  And, to be honest, I much preferred the symmetry of having everything assembled out of just three unique parts.

I know I’ve mentioned this before, but I really like the idea of a MakerBot printable toy that can be printed in one go and then assembled without tools or any additional hardware.  I also think this would make a great MakerBot print demonstration.

I’ll post some pictures of the parts a little bit later.

3x2x1 totally printable puzzle cube proof of concept success!

Posted on by

I’ve printed up pieces uploaded this morning to Thingiverse, tried them together, broke two pieces, modified them, printed, and fit some together.  I’ve just modified the STL for what I hope is the last time.  However, I have the barbell fit snugly into the center cube.  It rotates relatively freely and does not want to pop out.  (Of course, I’m sure it could/would if I applied enough force).  This leaves the outside cubes.  I modified the semicircular tabs a little and will reprint them later.

The only problem is that it takes about 40 minutes for my machine to print up two cube parts and a barbell, since they’re so solid.

The important thing is that I’ve just been able to print up and assemble the crucial mechanisms for this puzzle.  I think the next iteration may be what I needed.

New 3x2x1 Rubik’s cube design – totally printable!

Posted on by
X-Ray view of the 3x2x1 puzzle cube

X-Ray view of the 3x2x1 puzzle cube

This is easily my most intricate digital design for the MakerBot yet.  It’s a 3x2x1 variation on the Rubik’s cube puzzle I had posted earlier.

This version incorporates the prior improvements as well as designing a connector system inspired by R3bbeca‘s beco block connectors.

This has enabled a totally printable toy.  This just makes me happy. 1  The idea that I can crank out a set of these parts, clean them up a little, and just snap the toy together is just amazing.

TomZ‘s original 1x2x3 “friendlier” Rubik’s cube designs were also totally printable – but required a printed pin that was later glued in place.  I like the ideal of all printed parts – but strongly prefer a design that can later be disassembled easily.  And, as I mentioned above – the ability to hand assemble the toy is important to me.

I wasn’t able to recreate R3bbeca’s female connector designs2 so I made a simplified version that should suffice.

The simplified connection mechanism is essentially two plastic fingers that will (hopefully) pinch the barbell into place.  This was made by designing the outline of the gripping “fingers,” creating a horizontal cylindrical hole slightly larger than the intended end of the barbell, then creating a vertical cylindrical hole in the center for the barbell to be inserted through, then a bit of cleanup.

The biggest potential problem is that this design will require a carefully tuned ‘bot.  The center cube pieces have a lot of stuff packed in there – semi-circular slots for the semi-circular tabs, connectors for the barbell, and thin walls separating things.  With those thin walls and interior overhangs, this may be a difficult design to print.

I think Bender is up to the task, but we’ll see in a few hours.  :)  I can’t wait to print this!

For me, having a MakerBot is like waking up to Christmas every morning.

Oh, and before I forget, if you want one of these – leave a comment or send me an e-mail through the Contact page.  Make me an offer.

  1. Perhaps a little prematurely, since I haven’t actually printed this yet… [↩]
  2. I believe I’ve already sufficiently lamented my inability to understand women and their mysterious lady ways. [↩]

Improving on the 3x2x1 Rubik’s Cube

Posted on by

I’ve been fiddling with the designs for the 3x2x1 Rubik’s Cube incorporating some of the changes I had considered:

  • I’ve widened the holes for the nut and bolt.
  • I’ve made all of the cubes solid.  I think it will just work better with solid parts.  I had left the four end cubes mostly hollow to:
    • Improve printing time
    • Use less plastic
    • Possibly make an interesting hiding place for something very small
  • I’ve shortened the “stem” that connects the semi-circular tab to the end cube to allow for a more snug fit.
  • I’ve made the semi-circular groove in the center cubes narrower, to allow for a more snug fit.
  • Make these cubes solid so that they slide against each other easier.
  • I’ve noticed that the nut and bolt I installed into either side of the center cubes were pushed sufficiently well inside that they don’t want to come out or rotate.  This is a very good thing for this design!  It turns out that if you rotate it too much in one direction, you can just rotate it back a few times and it will be tightened back up!  It also makes for easy disassembly/reassembly – just rotate the puzzle until it comes apart and rotate it back together to reassemble.

Revising the 3x2x1 Rubik’s “Cube”

Posted on by
3x2x1 Rubik's Cube

3x2x1 Rubik's Cube

I finally found the time to print a copy of my 3x2x1 Rubik’s Cube.  Having printed it, I’d make a number of improvements in the next design iteration.  I would:

  • Make the circular slots in the center cubes smaller or the circular tabs in the four outside cubes larger.
  • Enlargen the holes for the nut and bolt.
  • Make these cubes solid so that they slide against each other easier.1
  • Consider replacing the entire nut/bolt requirement with a connection similar to the becco block connectors.  This would make for a totally printable solution.
  • Print the cubes two at a time to minimize warping without a heated build platform.

It slides reasonably well and is certainly functional.  However, after several center cube rotations I will tighten the center bolt.2

  1. The four cube sections at the extremities are hollow. [↩]
  2. The hole for the nut is tight enough that it doesn’t rotate as I turn the bolt. [↩]

A MakerBot printed 3x2x1 Rubik’s Cube!

Posted on by
Lotu's print of the 3x2x1 Simplified Rubik's Cube

Lotu's print of the 3x2x1 Simplified Rubik's Cube

SWEET.  I’ve been so busy of late123 that I haven’t even been able to print several of the things I’ve uploaded. I’ve uploaded several cookie cutters, with another sitting on my hard drive and one more knocking about in my head keeping the cobwebs company.  I’ve also uploaded my variation on a simplified Rubik’s cube.

Well, someone printed it!  It looks AMAZING!  I wonder if it works properly?  I slapped the design together rather hastily after getting frustrated with my MakerBot failing to print TomZ’s 1x2x3 Rubik’s cube.4

I can’t wait to either get some feedback from Lotu (who printed it) or print up one of my own so I can improve on the design.  I’d really like to make a version that is 100% printed – with a snap joint in the middle rather than a nut/bolt system.  If I go down that route, I was thinking about incorporating what I learned from the fantastic Becco blocks connection system by r3becca.

If you print one of these, please answer the following questions:

  1. Which STL did you use?  The one with all 6 pieces or the one with 3?  Would you prefer printing the pieces one at a time?
  2. How well did they fit together?  Are they very snug?  Too loose?
  3. How well does the nut/bolt work?
  4. Did you have to adjust your Skeinforge settings at all?  Why?  How?
  5. Do you have giant hex wrenches like Lotu does?
  1. Mostly writing nonsense. [↩]
  2. Which is particularly funny since my day job consists almost entirely of writing. [↩]
  3. Which is even funnier when you consider that you can tell I’m doing a particularly good job when my writing is completely incomprehensible. [↩]
  4. Did you catch how I swapped all the numbers around to differentiate my derivative?  I thought that was pretty clever… [↩]

New design: Rubik’s Cube (sorta)

Posted on by
Rubik's Cube for Dummies

Rubik's Cube for Dummies

I’ve already posted about how much I like TomZ’s simplified version of a Rubik’s cube.  Only problem is that I wasn’t able to encourage my MakerBot to print it.  Taking into account some of my ideas, I’ve designed a derivative.  It’s 4:45am at the moment – not a good time to have my MakerBot tooting and beeping.  ;)

Here’s what I’ve done with this version:

  1. Oriented the STL so it is immediately printable
  2. Run the STL through NetFabb to make sure it is manifold
  3. Reduced the number of unique printed parts from 5 to 2
  4. Put the STL together in such a way that you can print up two of the STL’s for a total of 6 parts, ready to be assembled
  5. Shrunk-ified the nubs for that fit into the center pieces
  6. Enlargened the grooves for the nubs
  7. Oriented the three parts so that they would use a minimal raft
  8. Changed the design so it will accommodate a nut/bolt attachment system rather than several additional plastic parts that must be glued together

In a future iteration, I hope to change the middle pieces so that all you need to do is snap the two middle pieces together.  Also, I’d like to incorporate any design suggestions from people who have tested this version.
